WS2812B IC RGB 5050SMD ECO Individual Addressable LED Strip Light, 16.4FT 300LED 60LED/m Flexible Full Color IP65 Waterproof DC5V Black PCB for DIY Project (No Power Adapter or Controller)

WS2812B IC RGB 5050SMD ECO Individual Addressable LED Strip Light, 16.4FT 300LED 60LED/m Flexible Full Color IP65 Waterproof DC5V Black PCB for DIY Project (No Power Adapter or Controller)

Compare

Product Description

2812_室内2812_室内

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Product Specification

LED Type Individually Addressable Chips on Board LED Strip Input Voltage DC 5V LED Quantity 60 LEDs/M；30LEDs/M; 144LEDs/M IC Type WS2812B IC Color full color 24-bit Color Order G R B. (Not RGB) Working Mode Work with LED Controller. (Package do not include controller) Length 16.4ft(5M); 3.2ft(1M) Recommended power supply DC5V10A (Package do not include Power adapt) Waterproof Level IP30/IP65/IP67 Connector 3PIN JST male and female connectors

幻彩 Effect 防水 灯带 连接
1 Dream Color

2 Lighting Effect

3 Waterproof

4 Features

5 Connection

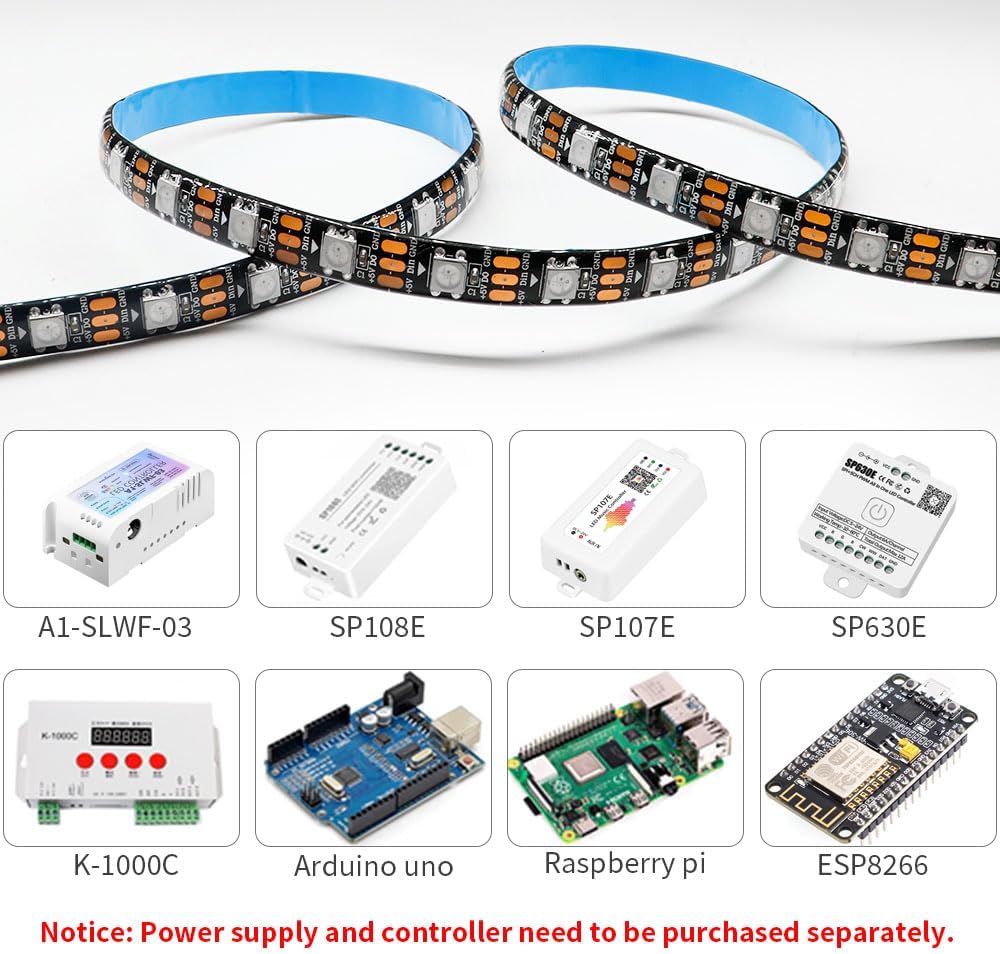

Extension 对比 controller Compatible Controllers

MCU: Arduino R3, UNO, Raspberry Pi,ESP8266,Teensy.etcMusic Controller: SP105E, SP107E, SP601E, SP608E, SP611E, SP630E.etcSmart Voice Controller: SP108E, SP511E, SP801E, SP901E.etc Parallel connection Parallel connection

In multiple light strips running with the same effect.

连接器 No Soldering Connector

plug and play

Solutions for the various corners and bumps of the room. (package do not include these connectors )

安装 IP30/IP65

Easy to install with double sided tape

安装 IP67

Fixing clips required for installation.(Package do not include clipS)

NOTE: The LEDs will BURN OUT if exposed to voltages higher than 5V. Please DO NOT connect any power supply with output higher than 5V directly to the LED strip and controller.

LOAMLIN SPI LED Strip for you

Add to Cart

Customer Reviews

4.3 out of 5 stars

277

4.6 out of 5 stars

30

4.4 out of 5 stars

17

—

4.0 out of 5 stars

1

Price

$13.99$13.99

—

—

—

—

Manufacturing Technology

SMD (Surface Mounted Devices)

SMD (Surface Mounted Devices)

COB (Chip On Board)

COB (Chip On Board)

COB + Side Lighting

IC Type

WS2812B IC

WS2812B IC

WS2811 IC

WS2811 IC

WS2811 IC

IC Number/ Pixels Number

30/60/144 Chips/M

144LEDs/M

20 Chips/M

10 Chips/M

11 Chips/M

LED Number

30/60/144 LEDs/M

144LEDs/M

720 LEDs/M

480 LEDs/M

630 LEDs/M

PCB Board Width

IP30/65 – 10mm；IP67 – 12mm

12mm

12mm

10mm

8mm

PCB Board Color

Black/White

Black/White

White

White

White

Operating Voltage

DC 5V

DC 5V

DC 24V

DC 24V

DC 24V

Color

RGB

RGB

RGB

RGB

RGB

Connectors

3Pin

3Pin

3Pin

3Pin

3Pin

Product Dimensions ‏ : ‎ 196.85 x 0.39 x 0.12 inches; 2.82 ounces
Item model number ‏ : ‎ WS2812B
Date First Available ‏ : ‎ May 18, 2021
Manufacturer ‏ : ‎ LOAMLIN
ASIN ‏ : ‎ B0956JQ68N

【Individually Addressable LEDs】 Dream full color chasing color Programmable LED Strip with WS2812B IC Built-in 5050SMD. Offering static effects, chasing effects, special effects, and more. 256 Brightness Display and 24-Bit Color Display. Each pixel can have its own color and brightness as your preference.
【Compatible Controllers】 The addressable WS2812B IC chip is built-in the 5050 RGB SMD, Each LED can have its own color and brightness according to your wishes.. Compatible with A1-SLWF-03 WLED, K-1000C, Rasp Pi, UNO R3, ESP8266, ESP32.etc Programmable Controllers. Support SP611E, SP621E, and SP602E.etc music controllers. Support SP530E, DR03W, and SP511E.etc smart music controllers. Controllers need to be purchased separately.
【Easy to DIY】 Each LED on the LED strip can be cut out, and the remaining strip will still function. You can freely shorten, extend, or bend it according to your project needs. It comes with 3-pin JST-SM connectors and separate power/ground wires on both ends for easy installation. Separated Power/Ground Wires on Both Ends For Voltage Adding.
【Only Supports DC5V Power Supply】 Never use 12V or 24V power supply. Match with a controller to produce hundreds of lighting effects such as color curtains, waterfalls, raindrops, and strobe lights, you can also edit animation effect by Coreldraw/Flash/LedEdit software. Power supply needs to be purchased separately.
【Power】Light up 1 color (Red, Green or Blue) is 0.1W/LED; 2 color (Red+Green , Red+Blue or Green+Blue) is 0.2W/LED; 3 color (Red+Green+Blue =mixed White) is 0.3W/LED. When Light up more LEDs on full white color mode , the brightness at the end will become lower and yellower. This is a physical phenomenon of voltage drop, not a defect in the light strip. You can add DC5V voltage on the strip end to solved.It is not recommended to keep the white light at maximum brightness for extended periods.
【AS YOU LIKE】Led Strip Can be Use For Making Led Screen,Led Wall,advertising board, apply to Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, Parlour, Bedroom, TV light, Karaoke Television Light, Computer Light, DIY and Home Decoration Etc.
【Please Note】 The LED strip is made by multiple 50cm PCB, so there is a soldering point every 50cm on the strip. But this Minor flaws will has no any bad affect of the strip performance. The IP30 and IP65 versions come with double-sided adhesive tape. The IP67 LED strip does not have tape on the back. Package does not include the controller and power supply for drive the LED strip.

$22.99

Compare


Price: $22.99
(as of Jan 04, 2025 06:49:40 UTC – Details)


Product Description

2812_室内2812_室内

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Product Specification

LED Type Individually Addressable Chips on Board LED Strip Input Voltage DC 5V LED Quantity 60 LEDs/M；30LEDs/M; 144LEDs/M IC Type WS2812B IC Color full color 24-bit Color Order G R B. (Not RGB) Working Mode Work with LED Controller. (Package do not include controller) Length 16.4ft(5M); 3.2ft(1M) Recommended power supply DC5V10A (Package do not include Power adapt) Waterproof Level IP30/IP65/IP67 Connector 3PIN JST male and female connectors

幻彩 Effect 防水 灯带 连接
1 Dream Color

2 Lighting Effect

3 Waterproof

4 Features

5 Connection

Extension 对比 controller Compatible Controllers

MCU: Arduino R3, UNO, Raspberry Pi,ESP8266,Teensy.etcMusic Controller: SP105E, SP107E, SP601E, SP608E, SP611E, SP630E.etcSmart Voice Controller: SP108E, SP511E, SP801E, SP901E.etc Parallel connection Parallel connection

In multiple light strips running with the same effect.

连接器 No Soldering Connector

plug and play

Solutions for the various corners and bumps of the room. (package do not include these connectors )

安装 IP30/IP65

Easy to install with double sided tape

安装 IP67

Fixing clips required for installation.(Package do not include clipS)

NOTE: The LEDs will BURN OUT if exposed to voltages higher than 5V. Please DO NOT connect any power supply with output higher than 5V directly to the LED strip and controller.

LOAMLIN SPI LED Strip for you

Add to Cart

Customer Reviews

4.3 out of 5 stars

277

4.6 out of 5 stars

30

4.4 out of 5 stars

17

—

4.0 out of 5 stars

1

Price

$13.99$13.99

—

—

—

—

Manufacturing Technology

SMD (Surface Mounted Devices)

SMD (Surface Mounted Devices)

COB (Chip On Board)

COB (Chip On Board)

COB + Side Lighting

IC Type

WS2812B IC

WS2812B IC

WS2811 IC

WS2811 IC

WS2811 IC

IC Number/ Pixels Number

30/60/144 Chips/M

144LEDs/M

20 Chips/M

10 Chips/M

11 Chips/M

LED Number

30/60/144 LEDs/M

144LEDs/M

720 LEDs/M

480 LEDs/M

630 LEDs/M

PCB Board Width

IP30/65 – 10mm；IP67 – 12mm

12mm

12mm

10mm

8mm

PCB Board Color

Black/White

Black/White

White

White

White

Operating Voltage

DC 5V

DC 5V

DC 24V

DC 24V

DC 24V

Color

RGB

RGB

RGB

RGB

RGB

Connectors

3Pin

3Pin

3Pin

3Pin

3Pin

Product Dimensions ‏ : ‎ 196.85 x 0.39 x 0.12 inches; 2.82 ounces
Item model number ‏ : ‎ WS2812B
Date First Available ‏ : ‎ May 18, 2021
Manufacturer ‏ : ‎ LOAMLIN
ASIN ‏ : ‎ B0956JQ68N

【Individually Addressable LEDs】 Dream full color chasing color Programmable LED Strip with WS2812B IC Built-in 5050SMD. Offering static effects, chasing effects, special effects, and more. 256 Brightness Display and 24-Bit Color Display. Each pixel can have its own color and brightness as your preference.
【Compatible Controllers】 The addressable WS2812B IC chip is built-in the 5050 RGB SMD, Each LED can have its own color and brightness according to your wishes.. Compatible with A1-SLWF-03 WLED, K-1000C, Rasp Pi, UNO R3, ESP8266, ESP32.etc Programmable Controllers. Support SP611E, SP621E, and SP602E.etc music controllers. Support SP530E, DR03W, and SP511E.etc smart music controllers. Controllers need to be purchased separately.
【Easy to DIY】 Each LED on the LED strip can be cut out, and the remaining strip will still function. You can freely shorten, extend, or bend it according to your project needs. It comes with 3-pin JST-SM connectors and separate power/ground wires on both ends for easy installation. Separated Power/Ground Wires on Both Ends For Voltage Adding.
【Only Supports DC5V Power Supply】 Never use 12V or 24V power supply. Match with a controller to produce hundreds of lighting effects such as color curtains, waterfalls, raindrops, and strobe lights, you can also edit animation effect by Coreldraw/Flash/LedEdit software. Power supply needs to be purchased separately.
【Power】Light up 1 color (Red, Green or Blue) is 0.1W/LED; 2 color (Red+Green , Red+Blue or Green+Blue) is 0.2W/LED; 3 color (Red+Green+Blue =mixed White) is 0.3W/LED. When Light up more LEDs on full white color mode , the brightness at the end will become lower and yellower. This is a physical phenomenon of voltage drop, not a defect in the light strip. You can add DC5V voltage on the strip end to solved.It is not recommended to keep the white light at maximum brightness for extended periods.
【AS YOU LIKE】Led Strip Can be Use For Making Led Screen,Led Wall,advertising board, apply to Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, Parlour, Bedroom, TV light, Karaoke Television Light, Computer Light, DIY and Home Decoration Etc.
【Please Note】 The LED strip is made by multiple 50cm PCB, so there is a soldering point every 50cm on the strip. But this Minor flaws will has no any bad affect of the strip performance. The IP30 and IP65 versions come with double-sided adhesive tape. The IP67 LED strip does not have tape on the back. Package does not include the controller and power supply for drive the LED strip.

Customers say

Customers find the string lights functional and providing good value for money. They appreciate the vibrant LEDs that work well, controlled properly by an Arduino Nano with a 5V Boost regulator. Many customers like the color accuracy and ease of installation. However, some have mixed opinions on brightness, quality, adhesive strength, and durability.

AI-generated from the text of customer reviews

Category: Tag:

Based on 12 reviews

0.0 overall
0
0
0
0
0

Add a review

  1. Kamil –

    Fantastic Quality and Performance!
    I’ve been using Loamlin’s WS2812B LED strips for several projects, and I couldn’t be more impressed with the quality and performance of these LEDs. The build is solid, with each LED perfectly aligned and securely attached to the strip. The colors are vibrant, and the transitions between effects are incredibly smooth, making them perfect for both simple and complex lighting projects.What really stands out is the consistency in brightness and color accuracy across the entire strip, even when using longer runs. The adhesive backing is strong and reliable, making installation a breeze. Plus, these strips are highly customizable and work flawlessly with my WLED setup.Whether you’re a hobbyist or a professional, Loamlin’s WS2812B LED strips are a top-notch choice. They’ve become my go-to for any project that requires precise, high-quality LED lighting. Highly recommended!

    Kamil –

  2. Justin –

    Great Value – Very Bright
    Very bright, and the protective cover over them seems very durable. It does not have a sticky back, so consider that before you buy, but you can easily put them up anywhere with double-sided alien tape. The TOP strip is this brand; the two panels are another brand. The strips are power-injected, but there was not much of a difference when they ran off the controller alone. I would highly recommend them.

    Justin –

  3. R3COOL –

    I’ll never go back to BFT lighting.
    I have been using BFT lighting WS2812 leds for projects for over a year. They have a great reputation and they do make a quality product. But the Loamlin strip was about half the price so I decided to give them a shot and I am so glad I did. Every pixel was bright and responsive when I plugged in the roll. I cut and re-soldered pieces together for a custom fit on the back of my tv and they have been working flawlessly for about a month now.I have nothing bad to say about BFT lighting, but for half the price, I can’t recommend them anymore when these strips are of comparable quality and are more affordable.

    R3COOL –

  4. BENNY NASH –

    worked well. Not sure if this is for the water proof ones.
    I had trouble getting the LEDs to show all white using the remote. i ordered seperately. only part of them would go white. but man they worked well in other colors. Lots of patterns to chose from on teh remote i ordered.

    BENNY NASH –

  5. Techneaux Reviews. –

    Works great and easy to cut and solder
    These lights were easy to work with. Easier than others that I’ve worked with. The cut pads were big enough and once scraped, easy to solder.They were of good quality and very bright when turned up.

    Techneaux Reviews. –

  6. Brian –

    Worked for a few minutes.
    This was my first string using an ESP32 and WLED. The plan was to embed them in the trim going around the 4 player arcade Im building. I had an issue at first finding the data pin on the 32. The string might have sat connected to power for about half an hour before I figured it out. Then they were beautiful, for about 5 minutes. When I brought them to the cabinet to see how they look the leds wouldn’t light again. I’ve tried everything even inserting the data down the string farther in case there was a problem with some of the leds. I notified the seller in feedback of my issue, but I haven’t gotten a response. I ordered another set that was ip67 and they work with my controllers so there’s definitely something wrong with this strip internally. Hopefully the second will last longer. As far as the ip67, im really dissatisfied with the clear casing they put on it. It’s just the bare strip loose in a silicone type tube with the ends glued shut. All it’d need is a pin hole and the thing would fill up with moisture. I think i will find a different seller.

    Brian –

  7. Evil Master DooDoo –

    good
    I got a bunch of these to play with with my ESp8266 and WLED (app for Android) which made it super super simple and a lot of fun. I thought the price was right and I probably buy a few more. I’ve got some around my entertainment center and I plan on putting some behind the TV. so inexpensive to get this project started All you really needed was the power supply the chip and the lights.

    Evil Master DooDoo –

  8. Cecil Clontz –

    Second purchase and will get more
    These are great LEDs. The string is very bright and the colors are great. I like the density of the LEDs on these and I’ve used them for a number of projects like edge lit signs.

    Cecil Clontz –

  9. Client d’Amazon –

    parfait

    Client d’Amazon –

  10. Ole Wilms –

    Bei Voller Helligkeit und Weiß benötigt der Streifen 5,2 Amphere, Netzteil also gut wählen. In der Beschreibung der LEDs steht das sie nur mit dem vorgesehenen Netzteil betrieben werden kann, das stimmt nicht.Mit einem ESP32S und WLED ließ sich die LED problemlos steuern.Wunderschön wenn mann es richtig einsetzt.

    Ole Wilms –

  11. Schamotti –

    Tolle Farben und Leuchtkraft, sie kleben einwandfrei und funktionieren super mit meinem ESP32 mit WLED. Habe mit diesen LEDs mein eigenes Ambilight gebaut. Jede LED lässt sich einzeln ansteuern. Versorge sie über eine 5V 15A Netzteil. Würde ich immer wieder kaufen.

    Schamotti –

  12. Maximilian Hohmeier –

    Habe die Kette für meinen 3d Drucker zur Beleuchtung benutzt, damit man auf der Kamera was sieht wenn das Zimmer Licht aus ist. Leuchten sehr gut, das einzige was blöd war, das die Richtung der LEDs bzw. der Aufkleber auf dem Band falsch herum war und ich so gleich die erste Hälfte geschrottet habe. Aber das war okay da ich nur die halbe Kette brauchte.Ansonsten top.

    Maximilian Hohmeier –
